Chemical Industry Explosion Proof Enclosures For Electrical Control Station

Brand Name : Vican

Model Number : V-E001

Certification : CNEX,ISO,CE,RoHS

Place of Origin : China

MOQ : 10

Price : negotiation

Payment Terms : L/C, T/T, Western Union,Paypal

Supply Ability : 5000 pieces per mongh

Delivery Time : 10-15 days

Packaging Details : Carton

Material : Cast aluminum / Stainless steel

Ex Marking : Exd II CT6GB

Product name : Explosion proof enclosure

Protection grade : IP65 / 66

Color : Gray

warranty : 3 year

Contact Now

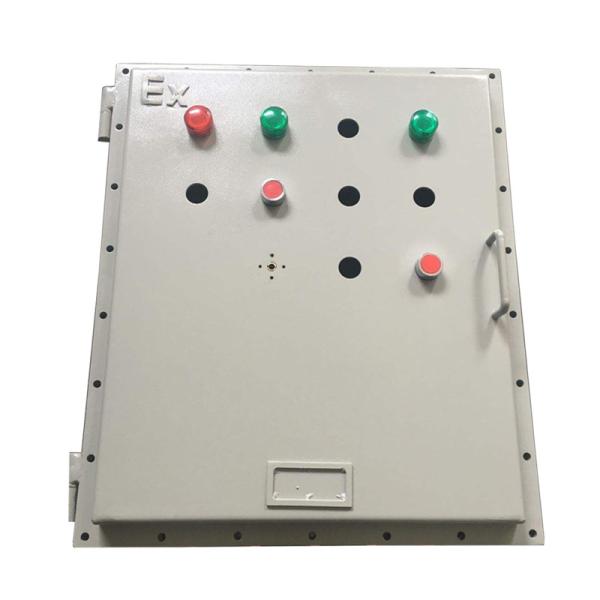

Cast aluminum explosion proof enclosure for electrical control station

Description:

Explosion proof enclosure is designed for electrical devices are used in hazardous location. The explosion enclosure make the equipments can operate in environments where concentrations of flammable gases, vapors, liquids or combustible particles pose risks of ignition and explosion. The protection degree is up to IP65 for weather and dust proof.

Specifications:

enclosure size available
EXe(mm) EXd IIB(mm) EXd IIC(mm)
135*135*100 200*200*130/150 200*200*130
135*200*100 200*300*150/180 300*300*150
200*200*100 300*300*150/180
200*300*150 300*400*150/180
300*300*150 400*500*160
300*400*150 400*500*200
400*500*150 500*600*160
500*600*200
500*600*250
The above dimensions are made of aluminum alloy. If it needs custom-made, it can be Steel plate welding or stainless steel.

Application:

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category IIA and II B IIC where the temperature classification is T6.

3. Two type of Ex d(IIB) and complex(IIC).

4. Flammable dust atmosphere.

5. Widely using in the fields of oil, chemical industry , spaceflight ,war industry and so on.
